Farmall 1466 Transmission


Farmall 1466 tractor photo
Row-Crop tractor

Note: the Farmall model 1466 is the same as the International Harvester 1466. The following data is from the 1466 listing.
Transmissions overview
8-speed
16-speed
Transmission
Transmission:gear
Gears:8 forward and 4 reverse
Oil capacity:88 qts
83.3 L
Four gears each in high, low, and reverse ranges.
Speeds
With 18.4-38 rear tires.

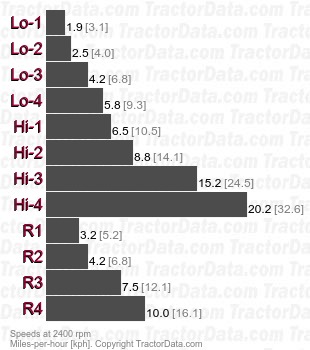

1466 gear  speeds
Transmission
Transmission:Torque Amplifier
Gears:16 forward and 8 reverse
Oil capacity:88 qts
83.3 L
The Torque Amplifier (TA) provides a power shift in all gears and ranges from direct drive (DD) to a lower TA speed. Without clutching the TA lever is pulled to the rear to engage. The transmission is returned to direct drive by pushing the TA lever forward.
Speeds
With 18.4-38 rear tires.

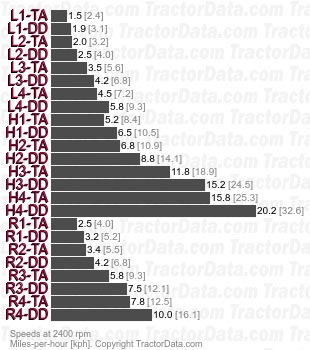

1466 Torque Amplifier  speeds
