Farmall 826 Tests
|
|
| Tractor Tests | |
| NTTL 1045: D358 diesel Torque Amplifier 2WD | |
| NTTL 1046: D358 diesel hydrostatic 2WD |

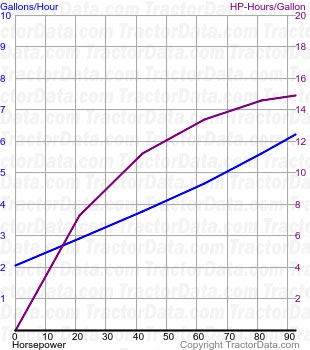

| Nebraska Tractor Test 1045 | |||
| |||
| Nebraska Tractor Test 1045 | |
| D358 diesel Torque Amplifier 2WD June 3 - 27, 1970 Link: Nebraska Tractor Test 1045 file | |
| PTO performance | |
| Power at rated engine speed | 92.19 hp 68.7 kW |
| Fuel use | 6.2 gal/hour 23.5 l/hour |
| Power at rated PTO speed | 85.34 hp 63.6 kW |
| Fuel use | 1.0 gal/hour 3.8 l/hour |
| Drawbar performance | |
| Max power | 78.92 hp 58.9 kW |
| Fuel use | 6.2 gal/hour 23.5 l/hour |
| Gear 1-Hi-TA used for power test. | |
| Max pull | 9,631 lbs 4368 kg |
| Gear 3-Lo-TA used for pull test. | |

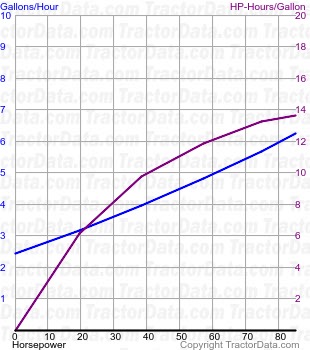

| Nebraska Tractor Test 1046 | |||
| |||
| Nebraska Tractor Test 1046 | |
| D358 diesel hydrostatic 2WD June 6 - 27, 1970 Link: Nebraska Tractor Test 1046 file | |
| PTO performance | |
| Power at rated engine speed | 84.66 hp 63.1 kW |
| Fuel use | 6.3 gal/hour 23.8 l/hour |
| Power at rated PTO speed | 79.00 hp 58.9 kW |
| Fuel use | 5.6 gal/hour 21.2 l/hour |
| Drawbar performance | |
| Max power | 61.39 hp 45.8 kW |
| Fuel use | 6.1 gal/hour 23.1 l/hour |
| Max pull | 8,780 lbs 3982 kg |
