Farmall 656 Transmission


Farmall 656 tractor photo
1965 - 1973
Row-Crop tractor
Series map:
656
756
70.9hp*
85.0hp*
*Estimated engine power for comparison only.
Transmission options
5-speed
10-speed two-speed power shift
Transmission
Transmissiongear
Gears5 forward and 1 reverse
Oil capacity68 qts
64.4 L
Speeds
With 15.5-38 rear tires.

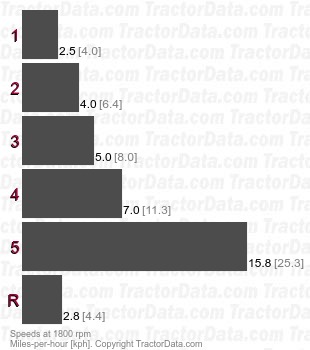

656 gear  speeds
Transmission
TransmissionTorque Amplifier
Typetwo-speed power shift
Gears10 forward and 2 reverse
Oil capacity68 qts
64.4 L
Speeds
With 15.5-38 rear tires.

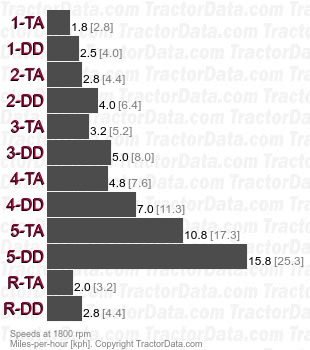

656 Torque Amplifier two-speed power shift speeds
Transmission
Transmissionhydrostatic
Gearsinfinite forward and reverse (2-range)
Speeds

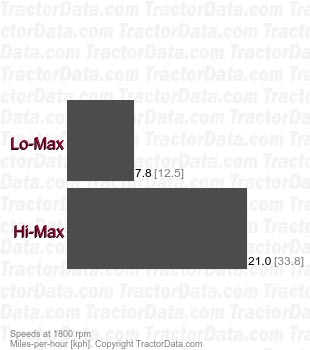

656 hydrostatic  speeds
