| 1956 - 1958 |
Row-Crop tractor |
|
Series map:
350
450
42.9hp*
63.4hp*
*Estimated engine power for comparison only.
Transmission options |
5-speed sliding gear |
10-speed two-speed power shift |

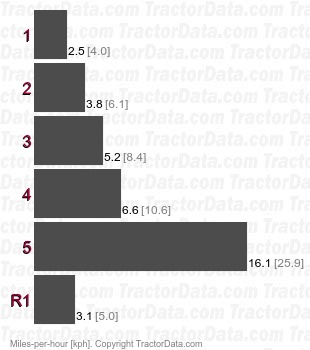

Transmission |
Type | sliding gear
|
Gears | 5 forward and 1 reverse
|
Clutch | dry disc
|
Speeds |
|
Transmission |

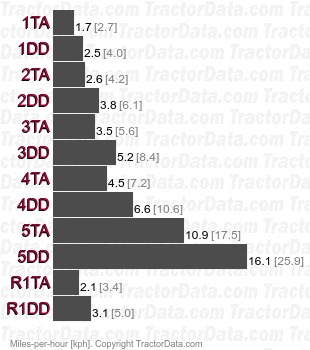

Transmission | Torque Amplifier
|
Type | two-speed power shift
|
Gears | 10 forward and 2 reverse
|
Clutch | dry disc
|
The Torque Amplifier (TA) provides a clutchless shift-on-the-move between normal, direct drive (DD) and the TA. By engaging the TA, tractor ground speed is reduced and torque is increased. |
Speeds |
|
