Farmall 140 Tests

Farmall 140 tractor photo
1958 - 1973
Series map:
*Estimated engine power for comparison only.
Nebraska Tractor Test 666

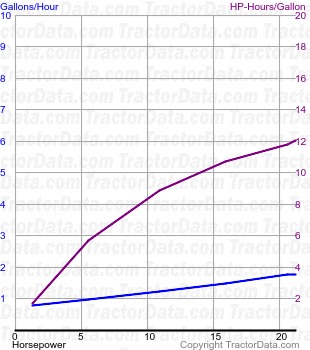

140 fuel use from test 666
Nebraska Tractor Test 666
Gasoline 4-speed 2WD
September 3 - 18, 1958
Link: Nebraska Tractor Test 666 file
Belt power (max)23.02 hp
17.2 kW
Belt fuel use (max)2.0 gal/hour
7.6 l/hour
Drawbar performance
Max power21.25 hp
15.8 kW
Fuel use2.0 gal/hour
7.6 l/hour
Gear 2 used for power test.
Max pull3,611 lbs
1637 kg
Gear 1 used for pull test.
