| | 1975 - 1983 |
| Sub-Compact Utility tractor | | Simplicity built |
|
| Engine Detail |
| Onan CCKB |
| gasoline |
| 2-cylinder |
| air-cooled |
| Displacement | 49.8 ci
0.8 L
|
| Bore/Stroke | 3.25x3.00 inches
83 x 76 mm
|
| Power | 19.5 hp
14.5 kW
|
| Air cleaner | paper element
|
| Compression | 7:1
|
| Rated RPM | 3600
|
| Starter volts | 12
|
| Oil capacity | 3.5 qts
3.3 L
|

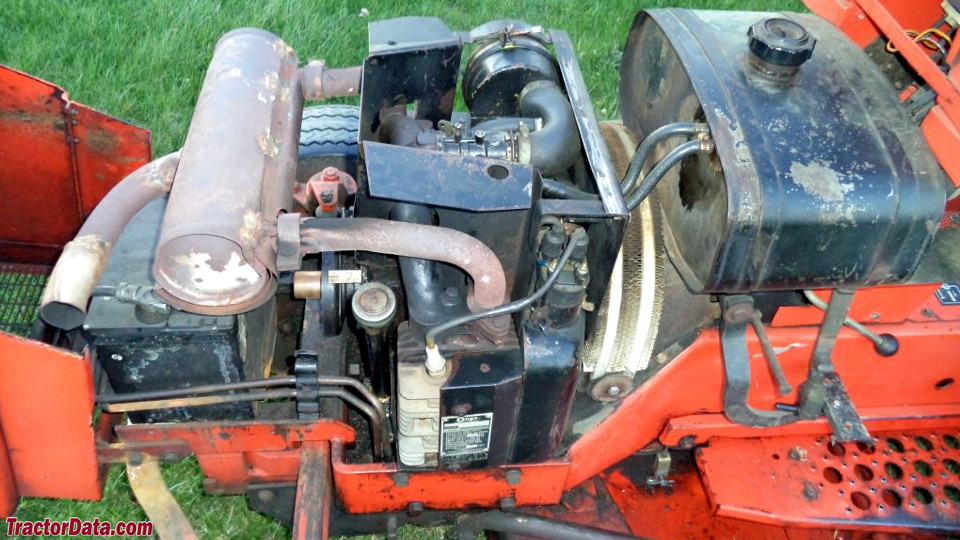

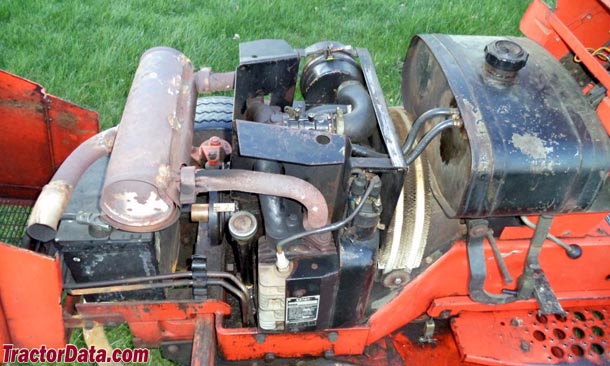

| Allis Chalmers 720 Engine |
 |
| Image courtesy of Mike Meyer |
