Tractors > Renault > 57

Renault 57 Engine



Renault 57 tractor photo
1967 - 1972
Utility tractor
Series map:
55
57
26.1kw
32.1kw
Engine Detail
Renault-Alfa 714
diesel
3-cylinder
liquid-cooled
Displacement151.8 ci
2.5 L
Bore/Stroke3.86x4.33 inches
98 x 110 mm
Power43 hp
32.1 kW
Compression18:1
Rated RPM2150
Torque118.8 lb-ft
161.1 Nm
Torque RPM1550
Firing order1-3-2
Starterelectric
Starter volts12
Oil capacity6.3 qts
6.0 L
Coolant capacity10.6 qts
10.0 L

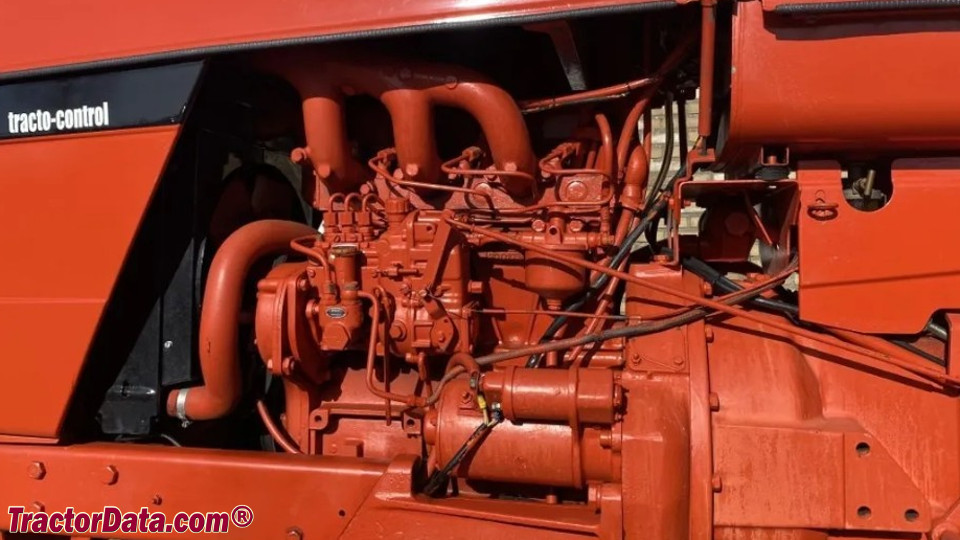

Renault 57 Engine
Renault 57 engine image
Image courtesy of Jacob Van Eekelen
