Landini 9880 Transmission


Landini 9880 tractor photo
1987 - 2000
80 Series
Utility tractor
Series:88809880
Transmissions overview
12-speed synchromesh
12-speed shuttle
24-speed synchromesh
24-speed creeper
Transmission
Type:synchromesh
Gears:12 forward and 4 reverse
Clutch:dry disc
Four gears in three ranges.
Speeds

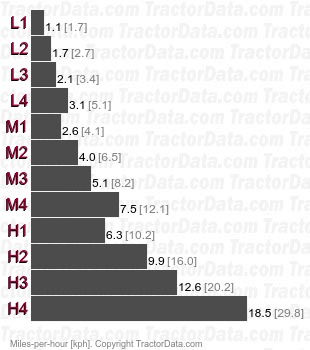

9880  synchromesh speeds
Transmission
Type:shuttle
Gears:12 forward and reverse
Clutch:dry disc
Four gears in three ranges with shuttle.
Speeds
With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward.
9880  shuttle speeds
Transmission
Type:synchromesh
Gears:24 forward and 12 reverse
The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%.
Transmission
Type:creeper
Gears:24 forward and 12 reverse
Speeds
With 16.9/14-34 rear tires.

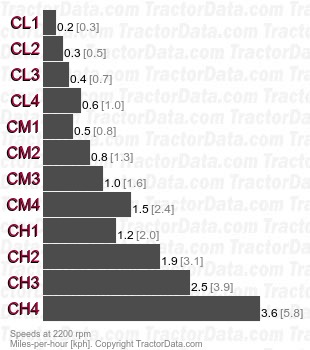

9880  creeper speeds
