Transmissions overview | |
12-speed synchromesh | |
12-speed shuttle | |
24-speed synchromesh | |
24-speed creeper |
Transmission | |
Type: | synchromesh |
Gears: | 12 forward and 4 reverse |
Clutch: | dry disc |
Four gears in three ranges. |

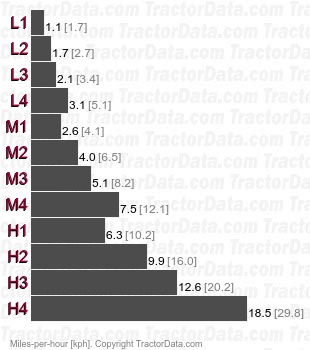

Speeds | |
![]() |
Transmission | |
Type: | shuttle |
Gears: | 12 forward and reverse |
Clutch: | dry disc |
Four gears in three ranges with shuttle. |
Speeds | |
With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward. | |
![]() |
Transmission | |
Type: | synchromesh |
Gears: | 24 forward and 12 reverse |
The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%. |
Transmission | |
Type: | creeper |
Gears: | 24 forward and 12 reverse |

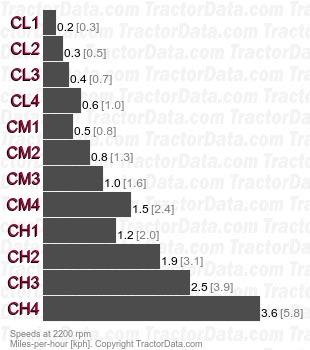

Speeds | |
With 16.9/14-34 rear tires. | |
![]() |
