| | 1978 - 1990 |
| 1004 Series | | Row-Crop tractor | | Landini built |
|
Series map:
1114
1134
82.0kw
98.4kw
| Engine Detail |
| Perkins AT6.354.4 |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 353.9 ci
5.8 L
|
| Bore/Stroke | 3.875x5.00 inches
98 x 127 mm
|
| Power | 132 hp
98.4 kW
|
| Rated RPM | 2400
|
| Torque | 340.0 lb-ft
461.0 Nm
|
| Torque RPM | 1600
|

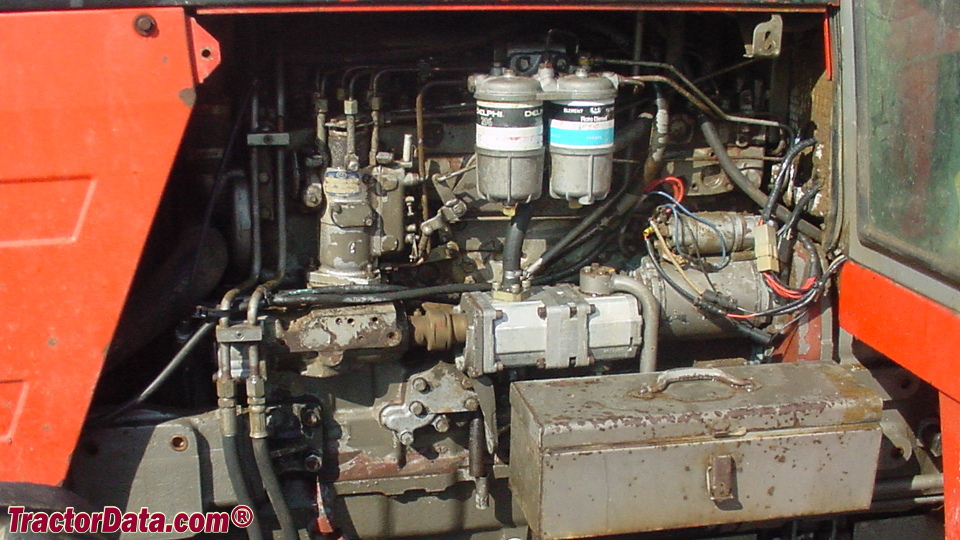

| Massey Ferguson 1134 Engine |
 |
| Image courtesy of Beukeveld Exports BV |
