Cub Cadet 7265 Engine


Cub Cadet 7265 tractor photo
1998 - 2003
7000 Series
Compact Utility tractor
Series map:
7260
7265
7300
26.0hp
26.0hp
30.0hp
Engine Detail
Mitsubishi
diesel
3-cylinder
liquid-cooled
Displacement80.43 ci
1.3 L
Bore/Stroke3.071x3.622 inches
78 x 92 mm
Power (gross)26 hp
19.4 kW
Fuel systemindirect injection
Air cleanerdry
Pre-heatingglow plugs
Compression22:1
Rated RPM2600
Idle RPM950-2780
Firing order1-3-2
Starter volts12
Starter power2.15 hp
1.6 kW
Coolant capacity6.7 qts
6.3 L
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.010 inches*Cold
0.254 mm
Engine Oil

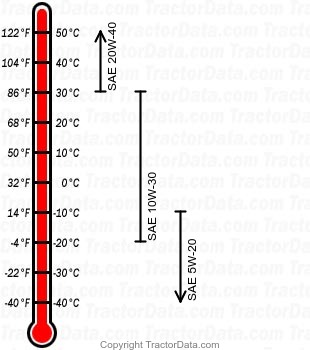

7265 diesel engine oil chart
Oil capacity4.4 qts
4.2 L
Oil change100 h
