Tractors > Massey-Harris > 101 Junior

Massey-Harris 101 Junior Tests



Massey-Harris 101 Junior tractor photo
1939 - 1946
Row-Crop tractor
Series map:
101 Junior
29.2hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 318

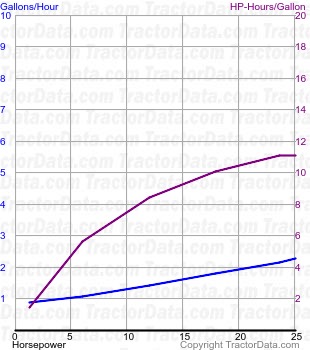

101 Junior fuel use from test 318
Nebraska Tractor Test 318
124 gasoline 4-speed 2WD
May 22 - 26, 1939
Link: Nebraska Tractor Test 318 file
Belt power (max)26.27 hp
19.6 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power20.47 hp
15.3 kW
Gear 3 used for power test.
Max pull3,079 lbs
1396 kg
Gear 1 used for pull test.
Nebraska Tractor Test

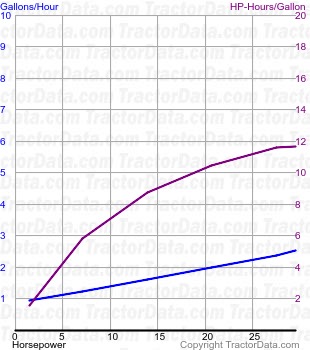

101 Junior fuel use from test
Nebraska Tractor Test
140 gasoline 4-speed 2WD
October 7 - 12, 1940
Link: Nebraska Tractor Test file
Belt power (max)30.56 hp
22.8 kW
Belt fuel use (max)2.6 gal/hour
9.8 l/hour
Drawbar performance
Max power24.65 hp
18.4 kW
Gear 3 used for power test.
Max pull3,278 lbs
1486 kg
Gear 1 used for pull test.
