| | 2002 - 2006 |
|
| 400 Series | | Utility tractor |
|
Series map:
431
451
461
52.0hp
52.0hp
75.0hp
| Transmission options |
| 8-speed gear |
| 8-speed synchronized shuttle |

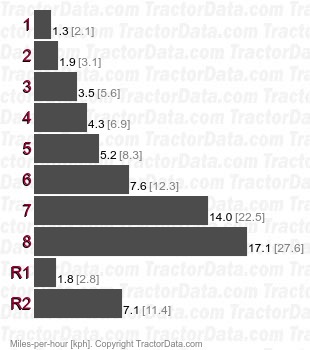

| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | 305mm dry disc
|
| Speeds |
|
| Shift Pattern |
 |

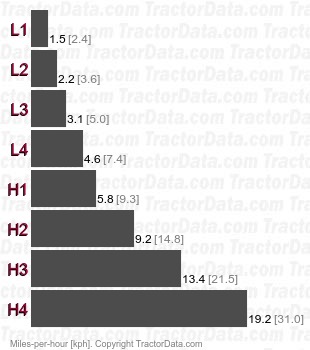

| Transmission |
| Type | synchronized shuttle
|
| Gears | 8 forward and reverse
|
| Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. |
| Shift Pattern |
 |
