CaseIH Puma 165 Engine


CaseIH Puma 165 tractor photo
2007 - 2010
Puma Series
Row-Crop tractor
Series map:
Puma 165
Puma 180
165.0hp
180.0hp
Engine Detail
CNH
intercooled turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement411 ci
6.7 L
Bore/Stroke4.094x5.197 inches
104 x 132 mm
EmissionsTier 3
Power165 hp
123.0 kW
Fuel systemelectronic high-pressure common rail
Cooling systemviscous fan
Air cleanerdual paper elements with aspirator
Compression16.5:1
Rated RPM2200
Starter volts12
Oil capacity16 qts
15.1 L

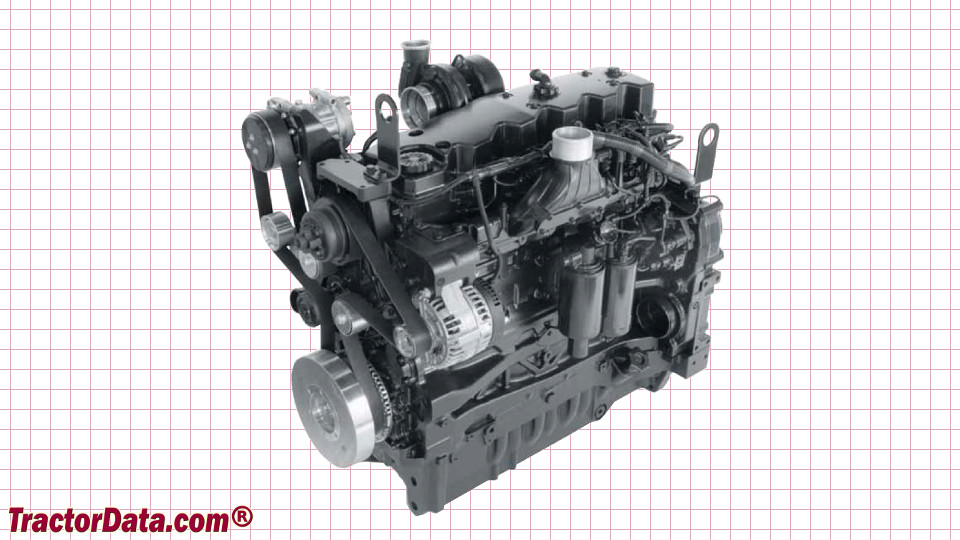

CaseIH Puma 165 Engine
CaseIH Puma 165 engine image
