Minneapolis-Moline UTU Tests



Minneapolis-Moline UTU tractor photo
1938 - 1955
Model U Series
Row-Crop tractor
Series map:
UTU
47.5hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 319: gasoline 5-speed 2WD
NTTL 521: gasoline
Nebraska Tractor Test 319

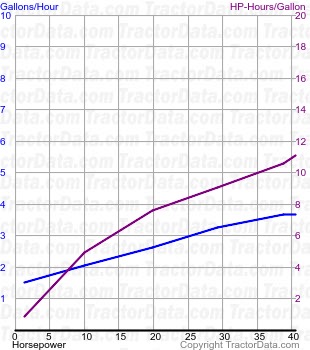

UTU fuel use from test 319
Nebraska Tractor Test 319
Gasoline 5-speed 2WD
June 13 - 17, 1939
Link: Nebraska Tractor Test 319 file
Belt power (max)42.71 hp
31.8 kW
Belt fuel use (max)4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power35.16 hp
26.2 kW
Gear 3 used for power test.
Max pull4,585 lbs
2079 kg
Gear 2 used for pull test.
Nebraska Tractor Test 521

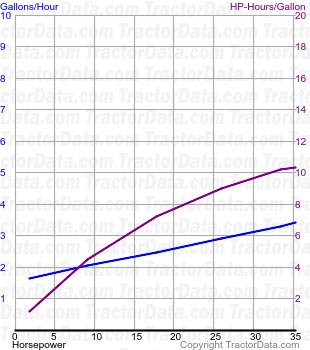

UTU fuel use from test 521
Nebraska Tractor Test 521
Gasoline
May 27 - June 7, 1954
Link: Nebraska Tractor Test 521 file
Belt power (max)37.23 hp
27.8 kW
Belt fuel use (max)4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power33.51 hp
25.0 kW
Gear 3 used for power test.
Max pull4,953 lbs
2246 kg
Gear 1 used for pull test.
