| | 1933 - 1939 |
| Agricultural Crawler tractor |
|
Series map:
TD-40
53.3hp*
*Estimated engine power for comparison only.
| Engine Detail |
| International Harvester |
| diesel |
| 4-cylinder |
| liquid-cooled vertical I-head |
| The TD-40's diesel engine was started on gasoline and then switched to diesel. The engine was manually cranked from the left side, which supplied fuel to a spark-ignition combustion chamber. Exhaust gas from this chamber was directed into the cylinders of the diesel. At 700 RPMs the gasoline chamber shut down and the engine ran as a true diesel. |
| Displacement | 460.7 ci
7.6 L
|
| Bore/Stroke | 4.75x6.50 inches
121 x 165 mm
|
| Compression | 15:1
|
| Rated RPM | 1100
|
| Oil capacity | 12 qts
11.4 L
|
| Coolant capacity | 60 qts
56.8 L
|

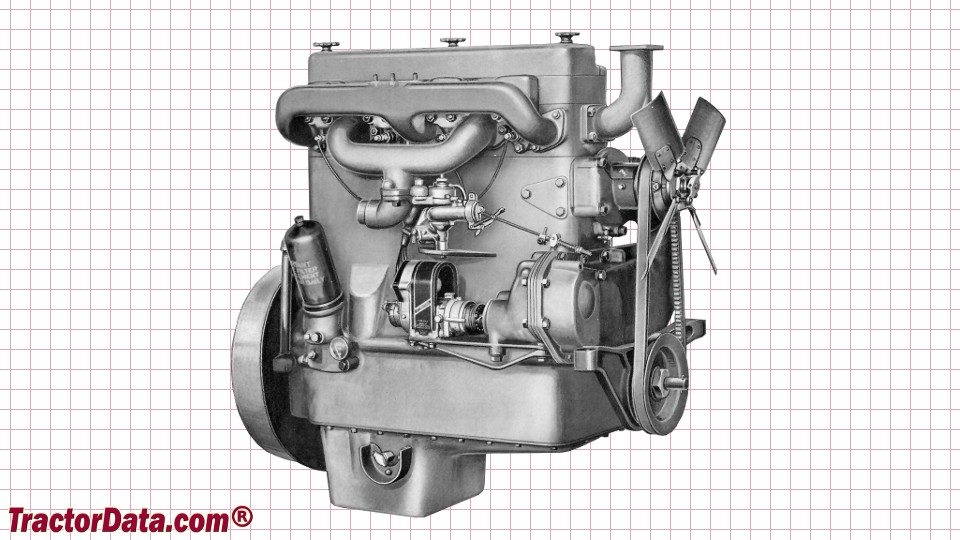

| McCormick-Deering TD-40 Engine |
 |
