Tractors > McCormick-Deering > TA-40

McCormick-Deering TA-40 Tests



McCormick-Deering TA-40 tractor photo
1932 - 1936
Agricultural Crawler tractor
Series map:
TA-40
50.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 211

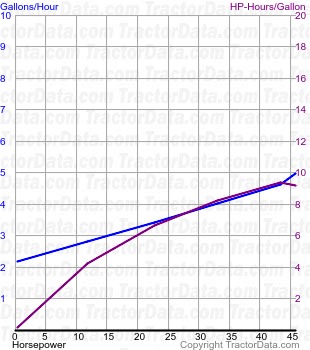

TA-40 fuel use from test 211
Nebraska Tractor Test 211
Gasoline 5-speed crawler
October 11 - 20, 1932
Link: Nebraska Tractor Test 211 file
Belt power (max)46.48 hp
34.7 kW
Belt fuel use (max)5.2 gal/hour
19.7 l/hour
Drawbar performance
Max power42.72 hp
31.9 kW
Gear 2 used for power test.
Max pull9399 lbs
4263 kg
Gear 1 used for pull test.
