Versatile 946 Transmission

Versatile 946 tractor photo
1987 - 1993
6 Series
Four-wheel Drive (4WD) tractor
Transmissions overview
12-speed constant mesh
12-speed full power shift
Type:constant mesh
Gears:12 forward and 4 reverse
Clutch:394mm dry disc
Oil capacity:21.5 qts
20.3 L
Four gears in three ranges, plus reverse range.

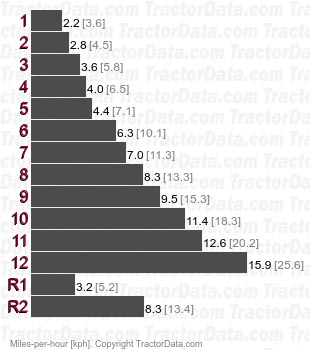

946  constant mesh speeds
Type:full power shift
Gears:12 forward and 2 reverse
Clutch:228mm wet disc
Oil capacity:50 qts
47.3 L
946  full power shift speeds
