Massey Ferguson 481 Transmission


Massey Ferguson 481 tractor photo
2002 - 2006
Model year
400 Series
Utility tractor
Series map:
471
481
491
72.0hp
80.0hp
89.0hp
Transmission options
8-speed gear
8-speed synchronized shuttle
12-speed partially synchronized
Transmission
Typegear
Gears8 forward and 2 reverse
Clutch305mm dry disc
Shift Pattern
Massey Ferguson 481 transmission controls
Transmission
Typesynchronized shuttle
Gears8 forward and reverse
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.

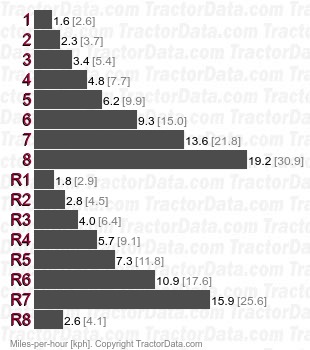

Speeds
481  synchronized shuttle speeds
Shift Pattern
Massey Ferguson 481 transmission controls
Transmission
Typepartially synchronized
Gears12 forward and 4 reverse
Three gears (1-3) plus reverse (R) with low/high ranges and an additional synchronized slow/fast range lever. Synchronized shifting between gears 2-3 and the slow/fast range. Only available on 481 models with a cab.
Shift Pattern
Massey Ferguson 481 transmission controls
