Tractors > International Harvester > T-6

International Harvester T-6 Tests



International Harvester T-6 tractor photo
1940 - 1969
Model year
Agricultural Crawler tractor
Series map:
T-6
41.1hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 346: gasoline 5-speed crawler
NTTL 347: distillate 5-speed crawler
Nebraska Tractor Test 346

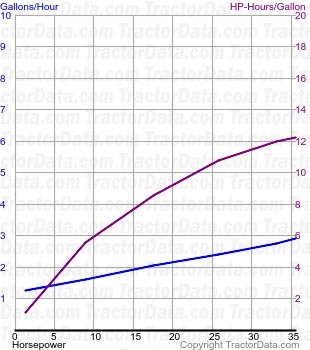

T-6 fuel use from test 346
Nebraska Tractor Test 346
Gasoline 5-speed crawler
May 14 - June 6, 1940
Belt power (max)36.96 hp
27.6 kW
Belt fuel use (max)3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power30.85 hp
23.0 kW
Gear 2 used for power test.
Max pull7,652 lbs
3470 kg
Gear 1 used for pull test.
Nebraska Tractor Test 347

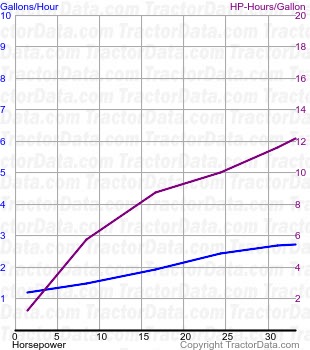

T-6 fuel use from test 347
Nebraska Tractor Test 347
Distillate 5-speed crawler
May 22 - June 10, 1940
Belt power (max)34.54 hp
25.8 kW
Belt fuel use (max)2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power29.53 hp
22.0 kW
Gear 2 used for power test.
Max pull7,434 lbs
3372 kg
Gear 1 used for pull test.
