| | 1959 - 1964 |
| Agricultural Crawler tractor |
|
Series map:
T-4
T-5
36.2hp*
40.0hp*
*Estimated engine power for comparison only.
| Transmission options |
| 5-speed gear |
| 10-speed two-speed power shift |
| 5-speed shuttle |
| Transmission |
| Type | gear
|
| Gears | 5 forward and 1 reverse
|
| Oil capacity | 13.2 qts
12.5 L
|

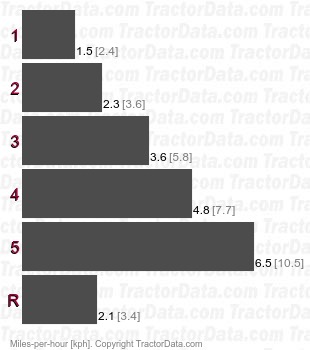

| Speeds |
|
| Transmission |
| Transmission | International Harvester Torque-Amplifier
|
| Type | two-speed power shift
|
| Gears | 10 forward and 2 reverse
|
| Oil capacity | 15.6 qts
14.8 L
|
| | 30.6 qts*Capacity on the T-4 equipped with hydraulics.
29.0 L
|

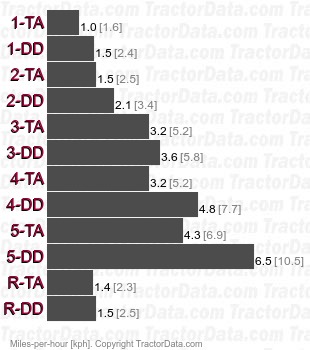

| Speeds |
|
| Transmission |
| Type | shuttle
|
| Gears | 5 forward and reverse
|
| Oil capacity | 15.6 qts
14.8 L
|
| | 30.6 qts*Capacity on the T-4 equipped with hydraulics.
29.0 L
|

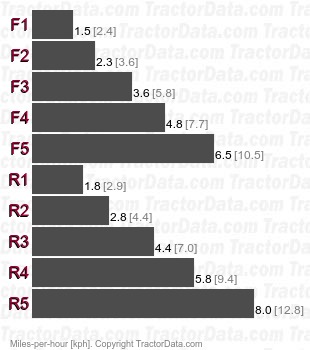

| Speeds |
|
