Satoh Bull S630 Engine
|
|
| Engine Detail | |
| Mitsubishi KE130 | |
| diesel | |
| 2-cylinder | |
| liquid-cooled inline | |
| Displacement | 76.04 ci 1.2 L |
| Bore/Stroke | 3.54x3.86 inches 90 x 98 mm |
| Power | 25 hp 18.6 kW |
| Air cleaner | dry |
| Compression | 21:1 |
| Rated RPM | 2500 |
| Idle RPM | 750-2700 |
| Torque | 51.3 lb-ft 69.6 Nm |
| Torque RPM | 2000 |
| Starter volts | 12 |
| Coolant capacity | 5.9 qts 5.6 L |
| Intake valve clearance | 0.0138 inches (cold) 0.351 mm |
| Exhaust valve clearance | 0.0138 inches (cold) 0.351 mm |

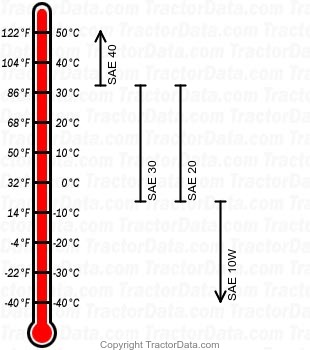

| Engine Oil | |
| |
| Oil capacity | 4.2 qts 4.0 L |
| Oil change | 100 h |
