| | 1986 - 1990 |
| 7100 Series | | Row-Crop tractor |
|
Series map:
7085
7110
7120
94.4hp*
122.2hp*
135.6hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Deutz B6L913 |
| diesel |
| 6-cylinder |
| air-cooled |
| Displacement | 374 ci
6.1 L
|
| Bore/Stroke | 4.02x4.92 inches
102 x 125 mm
|
| Rated RPM | 2400
|
| Starter volts | 12
|
| Starter power | 4.0 hp
3.0 kW
|
| Oil capacity | 16 qts
15.1 L
|

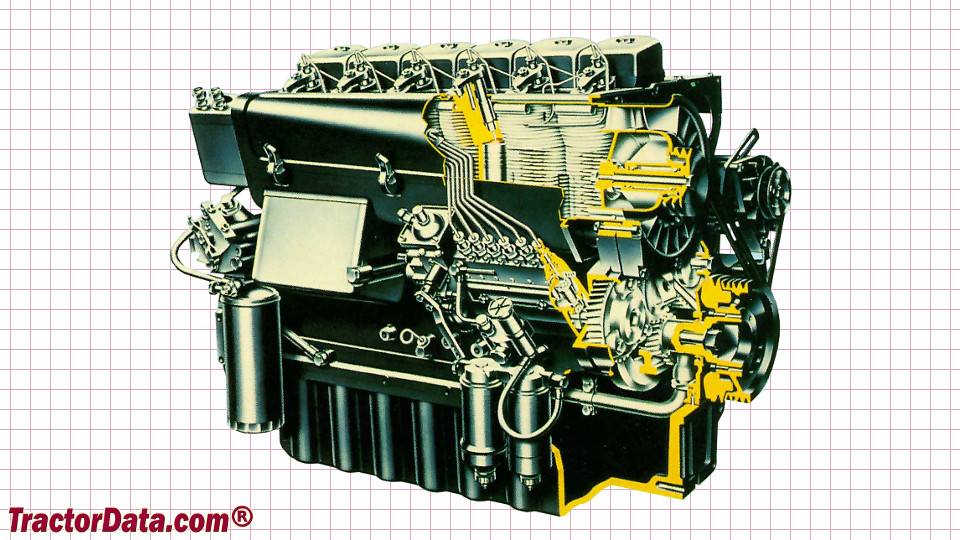

| Deutz-Allis 7110 Engine |
 |
