New Holland TL100 Tests


New Holland TL100 tractor photo
1999 - 2004
TL Series
Utility tractor
Series map:
TL90
TL100
90.0hp
95.0hp
OCED Tractor Test 1916

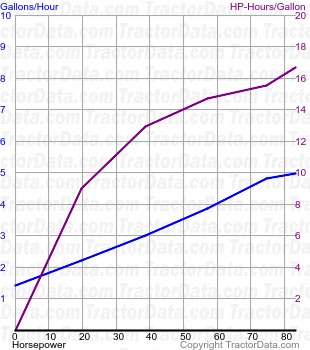

TL100 fuel use from test 350
OCED Tractor Test 1916
Diesel 24-speed 4WD
August 1999 - December 1999,
Link: OCED Tractor Test 1916 file
PTO performance
Power at rated engine speed83.1 hp
62.0 kW
Fuel use5.0 gal/hour
18.9 l/hour
Power at rated PTO speed81.9 hp
61.1 kW
Fuel use4.8 gal/hour
18.2 l/hour
Drawbar performance
Max power55.8 hp
41.6 kW
Fuel use4.6 gal/hour
17.4 l/hour
Gear 3ML used for power test.
Max pull9,525 lbs
4320 kg
Gear 1MH used for pull test.
