| | 1997 - 2001 |
| TNF Series | | Orchard/Vineyard tractor |
|
Series map:
TN75F
TN90F
77.5hp
91.1hp
| Transmission options |
| 16-speed partially synchronized |
| 32-speed two-speed power shift |
| Transmission |
| Type | partially synchronized
|
| Gears | 16 forward and reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 46.5 qts
44.0 L
|
| Four synchronized gears (1-4) in four ranges. Tractor must be stopped (and clutch used) to shift range. Mechanical shuttle lever. |

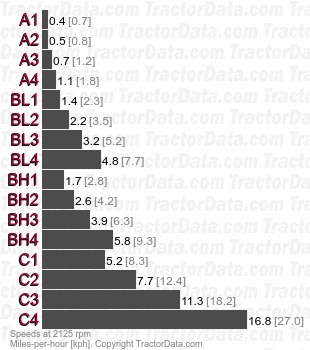

| Speeds |
| With 420/70R28 rear tires and 30 KPH transmission. |
|
| Transmission |
| Manufacturer | Dual Command
|
| Type | two-speed power shift
|
| Gears | 32 forward and 16 reverse
|
| Oil capacity | 58.1 qts
55.0 L
|
| Four synchronized gears (1-4) in four ranges with two-speed push-button power shift and left-hand power shuttle. Push-button power shift only applies to forward speeds. |

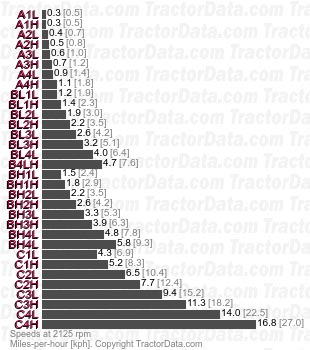

| Speeds |
| With 420/70R28 rear tires and 30 KPH transmission. |
|
