New Holland TL80 Tests

New Holland TL80 tractor photo
1999 - 2004
TL Series
Utility tractor
OCED Tractor Test 1911

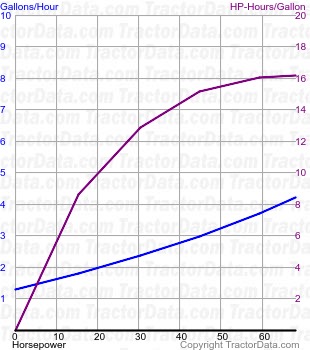

TL80 fuel use from test 348
OCED Tractor Test 1911
Diesel 24-speed 4WD
April 1999 - December 1999,
Link: OCED Tractor Test 1911 file
PTO performance
Max power:68.1 hp
50.8 kW
Fuel use:4.2 gal/hour
15.9 l/hour
Power at rated engine speed:68.0 hp
50.7 kW
Fuel use:4.2 gal/hour
15.9 l/hour
Power at rated PTO speed:66.0 hp
49.2 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power:42.5 hp
31.7 kW
Fuel use:3.4 gal/hour
12.9 l/hour
Gear 1F Lo used for power test.
Max pull:9,195 lbs
4170 kg
Gear 3S Hi used for pull test.
