New Holland TN70 Tests

New Holland TN70 tractor photo
2000 - 2003
TN Series
Utility tractor
OCED Tractor Test 1946

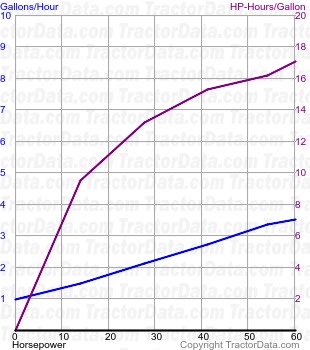

TN70 fuel use from test 359
OCED Tractor Test 1946
Diesel 8-speed 4WD
November 1 - December 31, 2000
Link: OCED Tractor Test 1946 file
PTO performance
Power at rated engine speed:60.1 hp
44.8 kW
Fuel use:3.5 gal/hour
13.2 l/hour
Power at rated PTO speed:59.8 hp
44.6 kW
Fuel use:3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power:53.3 hp
39.7 kW
Fuel use:3.5 gal/hour
13.2 l/hour
Gear 1F used for power test.
Max pull:7375 lbs
3345 kg
Gear 2S used for pull test.
