| | 1999 - 2001 |
| TL Series | | Utility tractor |
|
Series map:
TL70
TL80
65.0hp
80.0hp
| Transmission options |
| 12-speed partially synchronized |
| 12-speed mechnical shuttle |
| 24-speed two-speed power shift |
| 24-speed power shuttle |
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 304.8mm dry disc
|
| Four synchronized gears in three ranges, plus reverse. Tractor must be stopped, and clutch used, to shift range. |

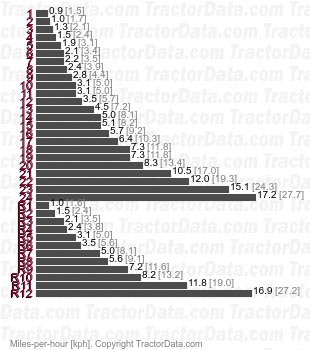

| Speeds |
| With 16.9-30 rear tires. |
|

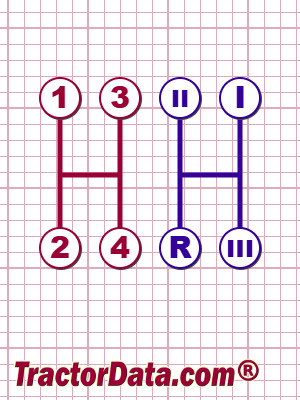

| Shift Pattern |
 |
| Transmission |
| Transmission | Synchro Command
|
| Type | mechnical shuttle
|
| Gears | 12 forward and reverse
|
| Available with creeper ranges providing 20 forward and 8 reverse speeds. |

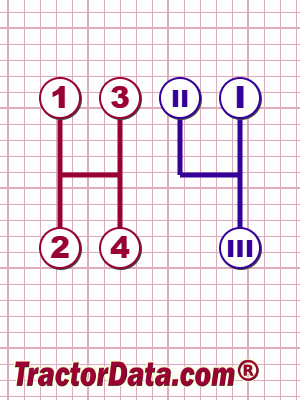

| Shift Pattern |
 |
| Transmission |
| Type | two-speed power shift
|
| Gears | 24 forward and 12 reverse
|
| Transmission |
| Type | power shuttle
|
| Gears | 24 forward and reverse
|
| Four synchronized gears in three ranges with two-speed push-button power shift and power shuttle. |
