| | 1955 - 1974 |
| Agricultural Crawler tractor |
|
| Engine Detail |
| Allis-Chalmers HD-344 |
| diesel |
| 4-cylinder |
| liquid-cooled vertical I-head |
| Displacement | 344 ci
5.6 L
|
| Bore/Stroke | 4.4375x5.5626 inches
113 x 141 mm
|
| Compression | 15.0:1
|
| Rated RPM | 1800
|
| Starter volts | 24
|
| Oil capacity | 10 qts
9.5 L
|
| Coolant capacity | 15 qts
14.2 L
|

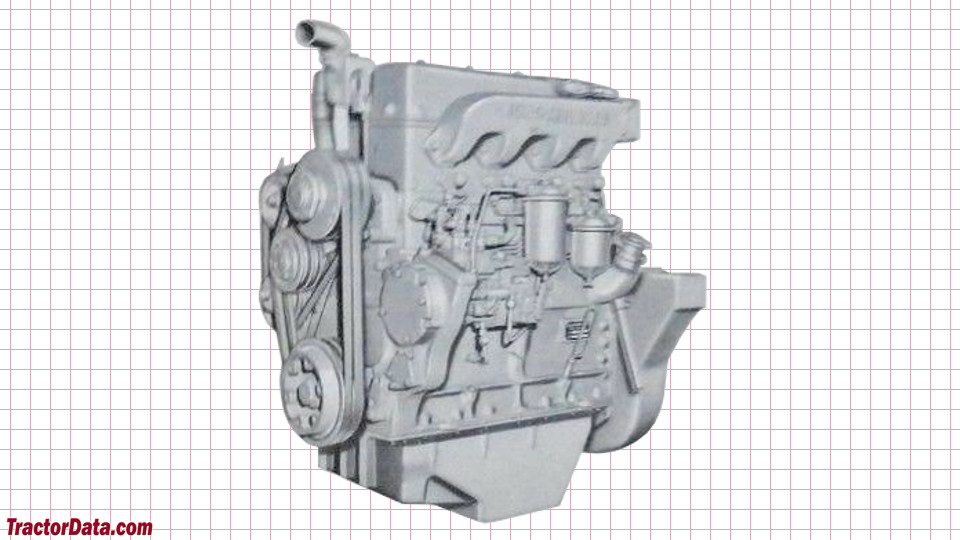

| Allis Chalmers HD6 Engine |
 |
