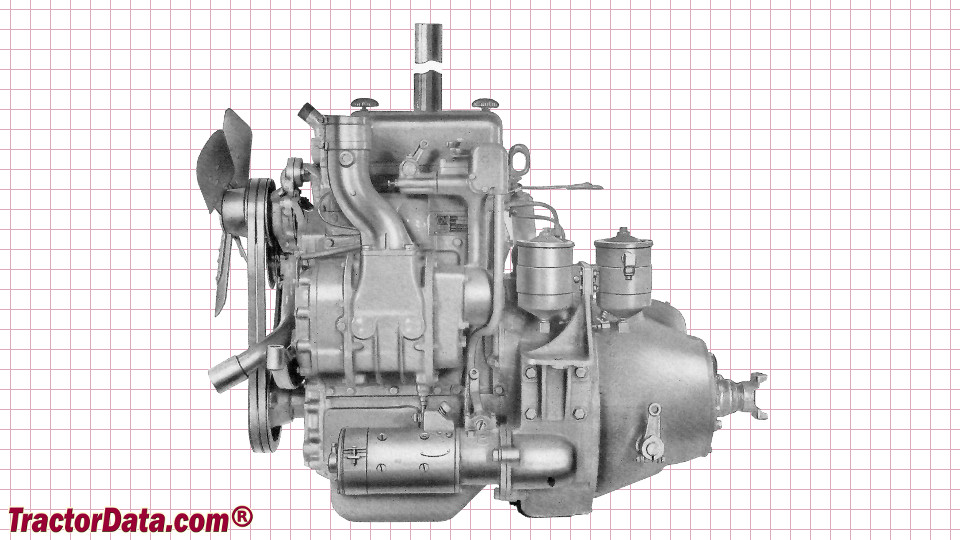

Allis Chalmers HD5 Engine


Allis Chalmers HD5 tractor photo
1946 - 1955
Agricultural Crawler tractor
Engine Detail
General Motors
blower diesel
2-cylinder
liquid-cooled 2-cycle vertical I-head
Displacement:142 ci
2.3 L
Bore/Stroke:4.25x5.00 inches
108 x 127 mm
Compression:16.0:1
Rated RPM:1800
Starter volts:12
Oil capacity:8 qts
7.6 L
Coolant capacity:15 qts
14.2 L
