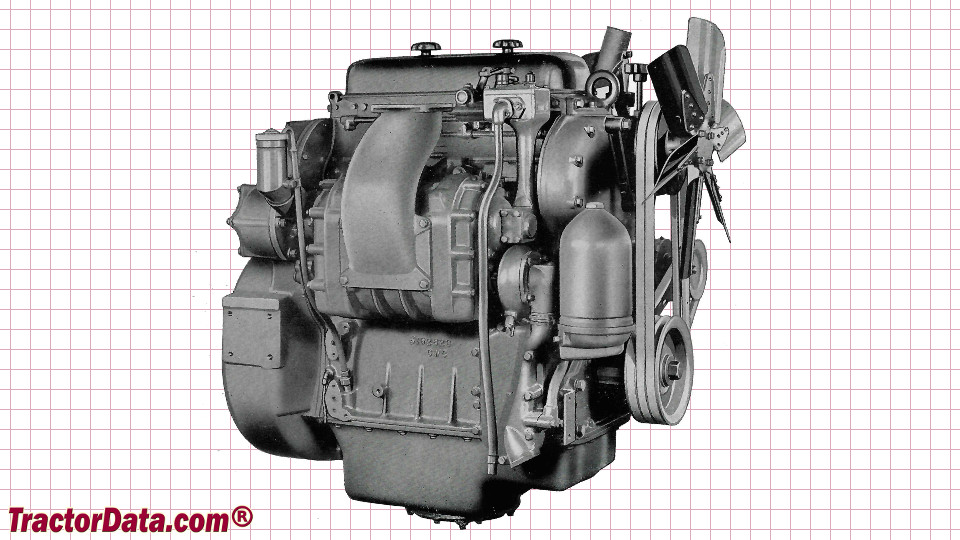

Allis Chalmers HD7 Engine
| | 1940 - 1950 |
| Agricultural Crawler tractor |
|
| Engine Detail |
| General Motors 3-71 |
| blower diesel |
| 3-cylinder |
| liquid-cooled 2-cycle vertical I-head |
| Displacement: | 213 ci
3.5 L
|
| Bore/Stroke: | 4.25x5.00 inches
108 x 127 mm
|
| Air cleaner: | oil bath
|
| Compression: | 16.0:1
|
| Rated RPM: | 1500
|
| Starter volts: | 12
|
| Coolant capacity: | 23 qts
21.8 L
|

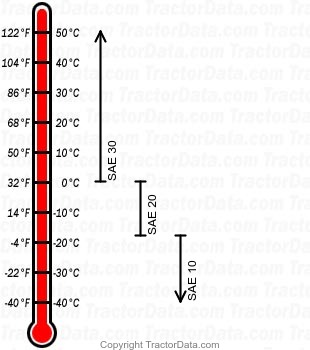

| Engine Oil |
|
| Oil capacity: | 8.5 qts
8.0 L
|
