Tractors > Allis Chalmers > M

Allis Chalmers M Tests



Allis Chalmers M tractor photo
1932 - 1942
Agricultural Crawler tractor
Tractor Tests
NTTL 216: 4.9L gasoline 4-speed crawler
NTTL 239: gasoline 4-speed crawler
Nebraska Tractor Test 216

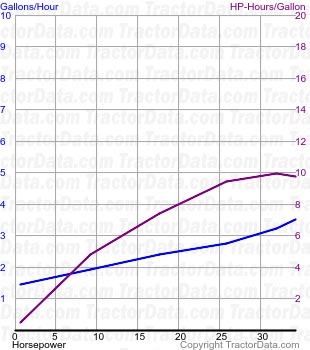

M fuel use from test 216
Nebraska Tractor Test 216
4.9L gasoline 4-speed crawler
September 23 - October 9, 1933
Link: Nebraska Tractor Test 216 file
Belt power (max)35.43 hp
26.4 kW
Belt fuel use (max)3.6 gal/hour
13.6 l/hour
Drawbar performance
Max power29.65 hp
22.1 kW
Gear 1 used for power test.
Max pull5,166 lbs
2343 kg
Gear 1 used for pull test.
Nebraska Tractor Test 239

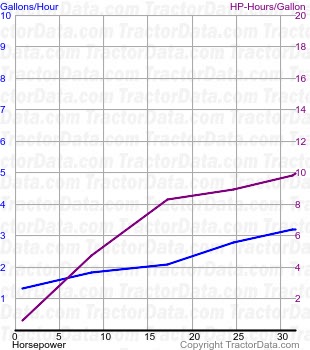

M fuel use from test 239
Nebraska Tractor Test 239
Gasoline 4-speed crawler
August 1 - 9, 1935
Link: Nebraska Tractor Test 239 file
Belt power (max)35.05 hp
26.1 kW
Belt fuel use (max)4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power28.66 hp
21.4 kW
Gear 2 used for power test.
Max pull5,009 lbs
2272 kg
Gear 1 used for pull test.
