Tractors > Allis Chalmers > 20-35

Allis Chalmers 20-35 Tests



Allis Chalmers 20-35 tractor photo
1922 - 1930
Standard-tread tractor
Series map:
20-35
38.9hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 83: gasoline 2-speed 2WD
NTTL 151: gasoline 2-speed 2WD
Nebraska Tractor Test 83
Gasoline 2-speed 2WD
September 15 - 24, 1921
Link: Nebraska Tractor Test 83 file
Belt power (max)43.73 hp
32.6 kW
Belt fuel use (max)4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power25.45 hp
19.0 kW
Max pull3075 lbs
1394 kg
Nebraska Tractor Test 151

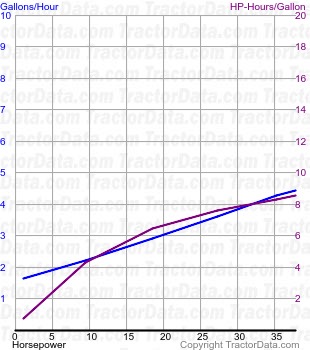

20-35 fuel use from test 151
Nebraska Tractor Test 151
Gasoline 2-speed 2WD
June 19 - 26, 1928
Link: Nebraska Tractor Test 151 file
Belt power (max)44.29 hp
33.0 kW
Belt fuel use (max)5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power33.20 hp
24.8 kW
Max pull4,400 lbs
1995 kg
