| | 2005 - 2006 |
| Compact Utility tractor | | Kukje built |
|
Series map:
C29
C35
C38
29.0hp
35.0hp
38.0hp
| Transmission |
| Type | partially synchronized
|
| Gears | 12 forward and reverse
|
| Oil capacity | 37 qts
35.0 L
|
| Oil type | | 10oF [-12oC]↑ | : JDM J20C | | 70o↔-40oF [21o↔-40oC] | : JDM J20D |
|
| Four gears in three ranges with left-hand shuttle. Gear shift is synchronized with clutch. Tractor must be stopped to shift range and shuttle. |

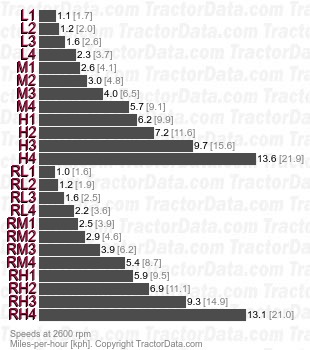

| Speeds |
| With 12.4-24 rear tires. |
|
