| | 1938 - 1957 |
| Agricultural Crawler tractor |
|
| Engine options |
| Caterpillar 3.6L 4-cyl diesel |
| Caterpillar 4.1L 4-cyl diesel |
| Engine Detail |
| Caterpillar |
| diesel |
| 4-cylinder |
| liquid-cooled |
| D2J engine, used from 1938 to 1947. |
| Displacement | 221 ci
3.6 L
|
| Bore/Stroke | 3.75x5.00 inches
95 x 127 mm
|
| Rated RPM | 1525
|
| Torque | 125 lb-ft
169.5 Nm
|
| Torque RPM | 1050
|

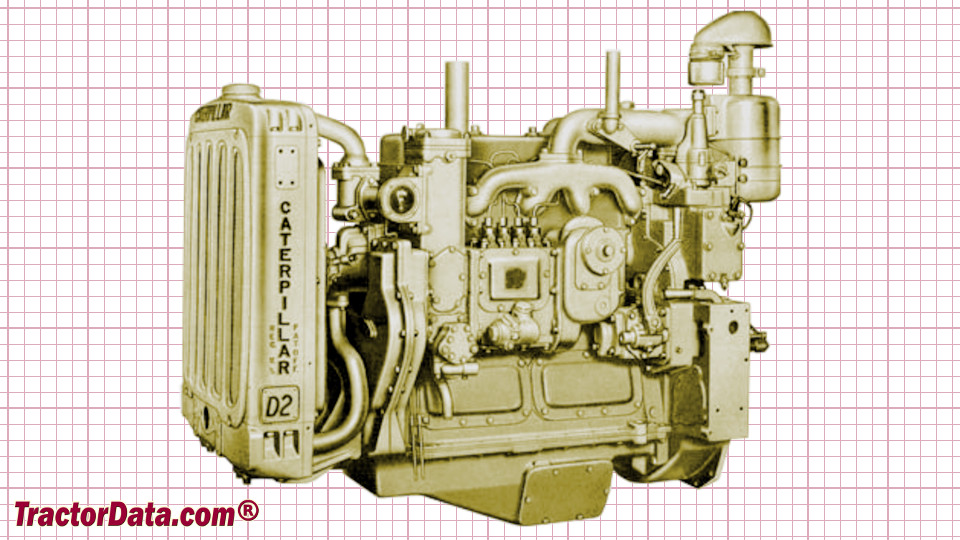

| Caterpillar D2 Engine |
 |
| Engine Detail |
| Caterpillar |
| diesel |
| 4-cylinder |
| liquid-cooled |
| D2U engine, used from 1947 through 1957. |
| Displacement | 252 ci
4.1 L
|
| Bore/Stroke | 4.00x5.00 inches
102 x 127 mm
|
| Compression | 18.5:1
|
| Rated RPM | 1525 (early)
|
| | 1650 (late)
|
| Starter | gasoline pony motor
|
| | electric OptOptional
|
| Starter volts | 24
|
