Tractors > McCormick Intl > MTX120

McCormick Intl MTX120 Engine



McCormick Intl MTX120 tractor photo
2004 - 2007
MTX Series
Row-Crop tractor
Series map:
MTX120
MTX135
118.0hp
131.0hp
Engine Detail
Iveco
turbocharged diesel
6-cylinder 12-valve
liquid-cooled
Displacement411.9 ci
6.8 L
Bore/Stroke4.094x5.197 inches
104 x 132 mm
Power118 hp
88.0 kW
Fuel systemmechanical injection
Air cleanerdual dry element
Compression17.5:1
Rated RPM2200
Torque383.6 lb-ft
520.2 Nm
Torque RPM1400
Starter volts12
Coolant capacity30.1 qts
28.5 L
Engine Oil

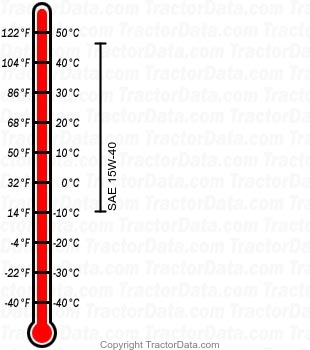

MTX120 diesel engine oil chart
Oil capacity16.9 qts
16.0 L
