McCormick Intl C80 Transmission



McCormick Intl C80 tractor photo
2001 - 2003
C Series
Utility tractor
Series:C70 ← C80 → C90
Transmissions overview
8-speed synchromesh
8-speed shuttle
16-speed two-speed power shift
Transmission
Type:synchromesh
Gears:8 forward and 4 reverse
Clutch:dry disc
Speeds
With 16.9-30 rear tires.

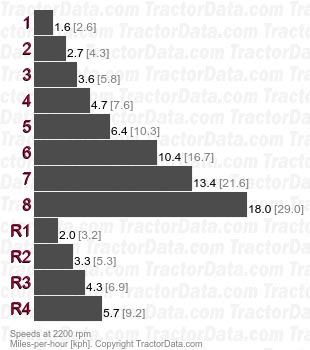

C80 synchromesh speeds
Transmission
Type:shuttle
Gears:8 forward and reverse
Speeds
With 16.9-30 rear tires.

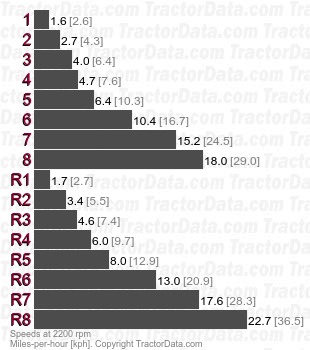

C80 shuttle speeds
Transmission
Type:two-speed power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
