John Deere 8230T Tests


John Deere 8230T tractor photo
2006 - 2009
8030 Series
Agricultural Crawler tractor
8220T
Series:8230T
8295RT
OCED Tractor Test 1886

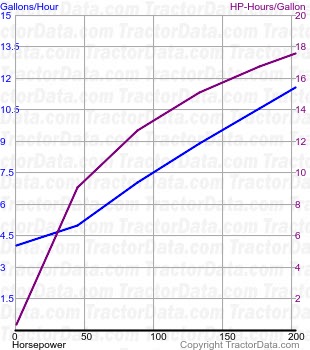

8230T fuel use from test 553
OCED Tractor Test 1886
Diesel PowerShift crawler
September 27 - October 10, 2006
Link: OCED Tractor Test 1886 file
PTO performance
Max power:232.55 hp
173.4 kW
Fuel use:12.6 gal/hour
47.7 l/hour
Power at rated engine speed:202.87 hp
151.3 kW
Fuel use:11.6 gal/hour
43.9 l/hour
Power at rated PTO speed:219.07 hp
163.4 kW
Fuel use:12.0 gal/hour
45.4 l/hour
Drawbar performance
Max power:170.72 hp
127.3 kW
Fuel use:11.7 gal/hour
44.3 l/hour
Gear 9 used for power test.
Max pull:26,901 lbs
12202 kg
Gear 5 used for pull test.
