John Deere 8230 Transmission

John Deere 8230 tractor photo
2006 - 2009
8030 Series
Row-Crop tractor
Transmission:John Deere PowerShift
Type:full power shift
Gears:16 forward and 4 reverse
Clutch:hydraulic wet disc
Oil capacity:160 qts
151.4 L
 168 qts
159.0 L (ILS)
Full power shift transmission operated with right-hand control lever. Transmission defaults to gear 7-forward and 2-reverse on startup, although this may be re-programmed. Automatic PowerShift (APS) enables automatic shifting to maintain engine load.

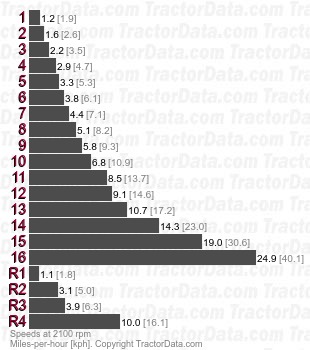

8230 PowerShift full power shift speeds
Transmission:John Deere Infinitely Variable Transmission (IVT)
Gears:infinite forward and reverse
IVT available with 40 or 50 kph (25 or 31 mph) maximum speed. With maximum speed set to less than 2 kph the transmission automatically enters creeper mode.

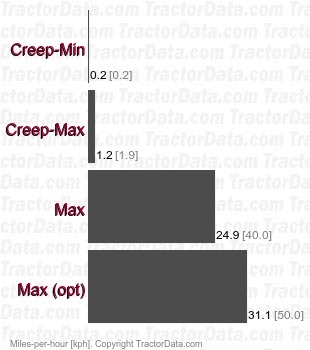

8230 Infinitely Variable Transmission (IVT)  speeds
