Tractors > SAME > Tiger 100

SAME Tiger 100 Transmission



SAME Tiger 100 tractor photo
1977 - 1980
Row-Crop tractor
Series map:
Tiger 100
Tiger Six 105
76.1kw
78.3kw
Transmission
Typesynchromesh
Gears12 forward and 3 reverse
Clutchmechanical dry disc
Four gears (1-4), plus reverse (R) in three ranges.

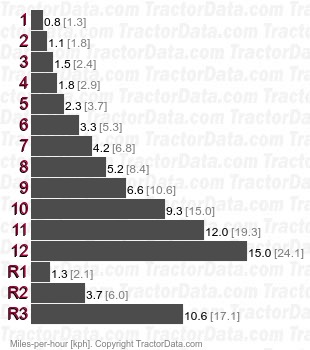

Speeds
With 18.4-34 rear tires.
Tiger 100 synchromesh speeds
