| | 1982 - 1985 |
| 56XL Series | | Row-Crop tractor |
|
Series map:
956
1056
70.8kw
78.3kw
| Transmissions overview |

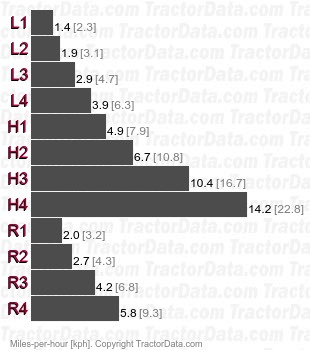

| 8-speed |

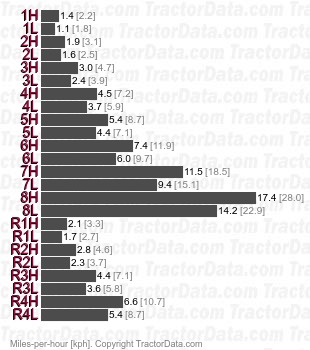

| 16-speed two-speed power shift |
| Transmission |
| Gears | 8 forward and 4 reverse
|
| Clutch | 310mm dry disc
|
| Speeds |
|
| Transmission |
| Transmission | IH-Synchron
|
| Type | two-speed power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | 310mm cerametallic disc
|
| Speeds |
|
