Transmissions overview | |
8-speed partially synchronized | |
12-speed partial power shift |
Transmission | |
Type: | partially synchronized |
Gears: | 8 forward and 4 reverse |
Clutch: | 292.1mm dry disc |
Oil capacity: | 48.1 qts 45.5 L |
Speeds | |
With 14-30 rear tires. | |
Transmission | |
Transmission: | Agriomatic S |
Type: | partial power shift |
Gears: | 12 forward and 4 reverse |
Oil capacity: | 40.7 qts 38.5 L |
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle. |

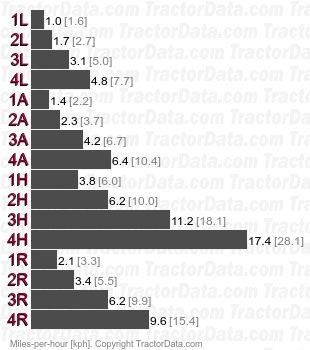

Speeds | |
With 14-30 rear tires. | |
