Tractors > AGCO Allis > 9435

AGCO Allis 9435 Tests



AGCO Allis 9435 tractor photo
1994 - 1997
9400 Series
Row-Crop tractor
Series map:
9435
9455
150.0hp*
172.2hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1692

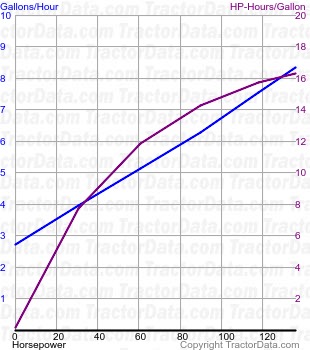

9435 fuel use from test 178
OCED Tractor Test 1692
Diesel 32-speed 4WD
May 17 - June 5, 1995
Link: OCED Tractor Test 1692 file
PTO performance
Max power143.78 hp
107.2 kW
Fuel use8.2 gal/hour
31.0 l/hour
Power at rated engine speed135.69 hp
101.2 kW
Fuel use8.3 gal/hour
31.4 l/hour
Power at rated PTO speed140.86 hp
105.0 kW
Fuel use8.3 gal/hour
31.4 l/hour
Drawbar performance
Max power120.26 hp
89.7 kW
Fuel use8.2 gal/hour
31.0 l/hour
Max pull15390 lbs
6980 kg
