AGCO Allis 5650 Tests

AGCO Allis 5650 tractor photo
1994 - 1999
5600 Series
SAME built
Series map:
*Estimated engine power for comparison only.
OCED Tractor Test 1497

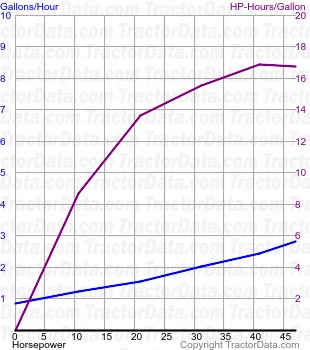

5650 fuel use from test 298
OCED Tractor Test 1497
Diesel 12-speed 4WD
July 1993 - September 1993,
Link: OCED Tractor Test 1497 file
PTO performance
Power at rated engine speed46.9 hp
35.0 kW
Fuel use2.8 gal/hour
10.6 l/hour
Power at rated PTO speed46.7 hp
34.8 kW
Fuel use2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power43.8 hp
32.7 kW
Fuel use3.5 gal/hour
13.2 l/hour
Gear 4N used for power test.
Max pull4385 lbs
1989 kg
Gear 3N used for pull test.
