Deutz-Fahr DX 6.30 Transmission

Deutz-Fahr DX 6.30 tractor photo
1983 - 1990
DX6 Series
Row-Crop tractor
DX 120
Series:DX 6.10DX 6.30DX 6.50
Transmissions overview
15-speed fully synchronized
Type:fully synchronized
Gears:15 forward and 5 reverse
Clutch:cerametallic disc
Oil capacity:50.7 qts
48.0 L
Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range.
Transmission:TW 904
Gears:20 forward and 5 reverse
Five gears (1-5) in four ranges (LL/L/M/H) plus reverse (R) range.
With 18.4-38 rear tires.

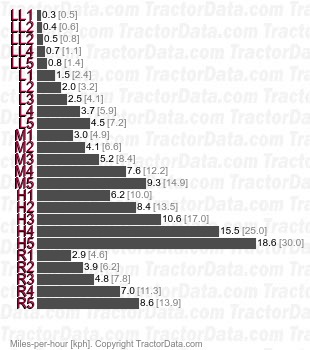

DX 6.30 TW 904  speeds
