Transmissions overview | |
8-speed | |
8-speed creeper |
Transmission | |
Gears: | 8 forward and 4 reverse |
Clutch: | 280mm dry disc |

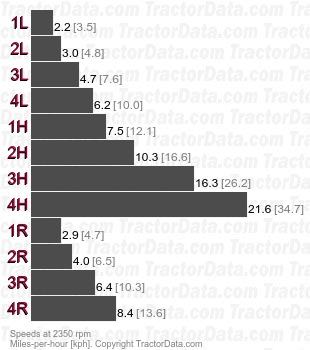

Four gears (1-4) in two ranges (low/high) plus reverse range. |
Speeds | |
With 13.6-36 rear tires. | |
Transmission | |
Type: | creeper |
Gears: | 8 forward and 4 reverse |
Clutch: | 280mm dry disc |

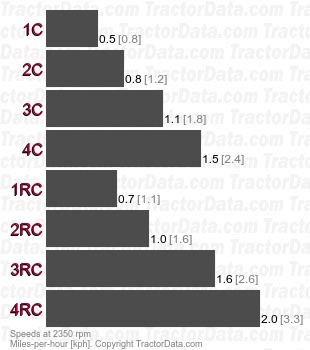

Creeper range provides an addition four gears forward and reverse. |
Speeds | |
With 13.6-36 rear tires. | |
