Tractors > Cub Cadet > 5254

Cub Cadet 5254 Transmission



Cub Cadet 5254 tractor photo
2004 - 2008
5000 Series
Sub-Compact Utility tractor
Series map:
5252
5254
5234D
25.0hp
25.0hp
23.0hp
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity20 qts
18.9 L
Oil type
Cub Cadet Drive System Fluid Plus
Oil change200 h
Two-range hydrostatic transmission with right-hand forward and reverse pedals. Tractor must be stopped to shift ranges.

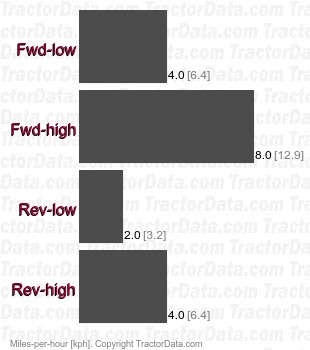

Speeds
5254 hydrostatic speeds
