Engine options | |
Ford 2.8L 4-cyl gasoline | |
Ford 2.8L 4-cyl LP gas | |
Ford 2.8L 4-cyl diesel |
Engine Detail | |
Ford EAF | |
gasoline | |
4-cylinder 8-valve | |
liquid-cooled vertical overhead valve | |
Displacement | 172 ci 2.8 L |
Bore/Stroke | 3.90x3.60 inches 99 x 91 mm |
Power (gross) | 62.6 hp 46.7 kW |
Air cleaner | oil bath |
Compression | 7.5:1 |
Rated RPM | 2000 |
Torque | 166 lb-ft 225.1 Nm |
Torque RPM | 1600 |
Firing order | 1-2-4-3 |
Starter volts | 6 |
Coolant capacity | 15 qts 14.2 L |
Sparkplug gap | 0.027 inches 0.686 mm |
Point gap | 0.025 inches 0.635 mm |
Intake valve clearance | 0.015 inches (hot) 0.381 mm |
Exhaust valve clearance | 0.015 inches (hot) 0.381 mm |

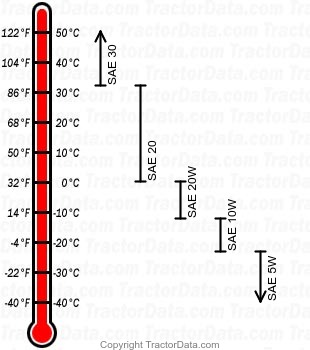

Engine Oil | |
Oil capacity | 5 qts 4.7 L |
Oil change | 100 h |

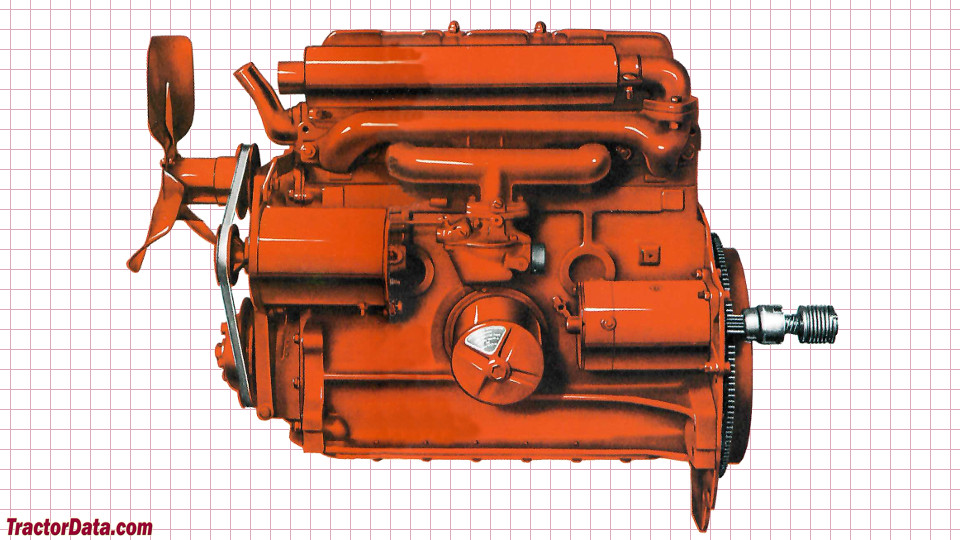

Ford 871 Engine | |
Engine Detail | |
Ford EAF | |
LP gas | |
4-cylinder 8-valve | |
liquid-cooled | |
Displacement | 172 ci 2.8 L |
Bore/Stroke | 3.90x3.60 inches 99 x 91 mm |
Air cleaner | oil bath |
Compression | 8.65:1 |
Rated RPM | 2200 |
Firing order | 1-2-4-3 |
Starter volts | 6 |
Sparkplug gap | 0.027 inches 0.686 mm |
Point gap | 0.025 inches 0.635 mm |
Intake valve clearance | 0.015 inches (hot) 0.381 mm |
Exhaust valve clearance | 0.015 inches (hot) 0.381 mm |
Engine Detail | |
Ford | |
diesel | |
4-cylinder 8-valve | |
liquid-cooled | |
Displacement | 172 ci 2.8 L |
Bore/Stroke | 3.90x3.60 inches 99 x 91 mm |
Power | 56.3 hp 42.0 kW |
Air cleaner | oil bath |
Compression | 16.8:1 |
Rated RPM | 2200 |
Torque | 140.4 lb-ft 190.4 Nm |
Torque RPM | 1400 |
Firing order | 1-2-4-3 |
Starter volts | 12 |
Engine Oil | |
Oil capacity | 5 qts 4.7 L |
