Ford 650 Engine


Ford 650 tractor photo
1955 - 1958
600 Series
Utility tractor
Series map:
650
840
33.3hp*
44.4hp*
*Estimated engine power for comparison only.
Engines overview
Ford 2.2L 4-cyl gasoline
Ford 2.2L 4-cyl LP gas
Engine Detail
Ford EAE Red Tiger
gasoline
4-cylinder 8-valve
liquid-cooled inline
Displacement134 ci
2.2 L
Bore/Stroke3.44x3.60 inches
87 x 91 mm
EmissionsTier 0
Air cleaneroil bath
Compression6.6:1
Rated RPM2200
Firing order1-2-4-3
Starter volts6
Coolant capacity15 qts
14.2 L
Sparkplug14MM
Sparkplug gap0.025 inches (min)
0.635 mm
 0.028 inches (max)
0.711 mm
Engine Oil

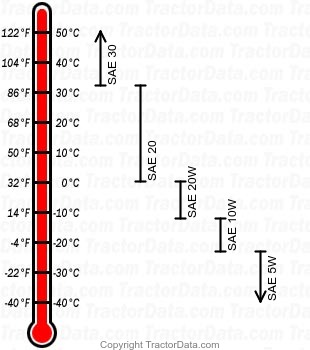

650 gasoline engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
Engine Detail
Ford EAE Red Tiger
LP gas
4-cylinder 8-valve
liquid-cooled inline
Displacement134 ci
2.2 L
Bore/Stroke3.44x3.60 inches
87 x 91 mm
Air cleaneroil bath
Compression6.6:1
Rated RPM2200
Firing order1-2-4-3
Sparkplug14MM
Sparkplug gap0.028 inches (min)
0.711 mm
 0.031 inches (max)
0.787 mm
Engine Oil
650 LP gas engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
