Tractors > CaseIH > STX450QT Quadtrac

CaseIH STX450QT Quadtrac Tests



CaseIH STX450QT Quadtrac tractor photo
2002 - 2005
Steiger STX Series
Articulated Crawler tractor
Series map:
STX425QT
STX450QT
STX500QT
425.0hp
450.0hp
500.0hp
OCED Tractor Test 1785

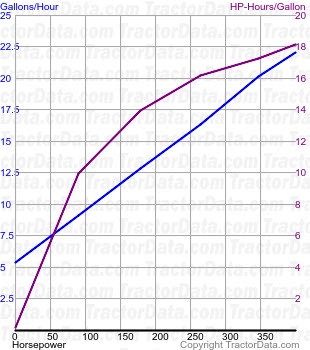

STX450QT Quadtrac fuel use from test 337
OCED Tractor Test 1785
Diesel 16-speed Crawler
October 4 - 19, 2000
Link: OCED Tractor Test 1785 file
PTO performance
Max power450.29 hp
335.8 kW
Fuel use22.3 gal/hour
84.4 l/hour
Power at rated engine speed399.14 hp
297.6 kW
Fuel use22.0 gal/hour
83.3 l/hour
Drawbar performance
Max power345.68 hp
257.8 kW
Fuel use22.1 gal/hour
83.6 l/hour
Gear 4 used for power test.
Max pull38412 lbs
17423 kg
Gear 3 used for pull test.
